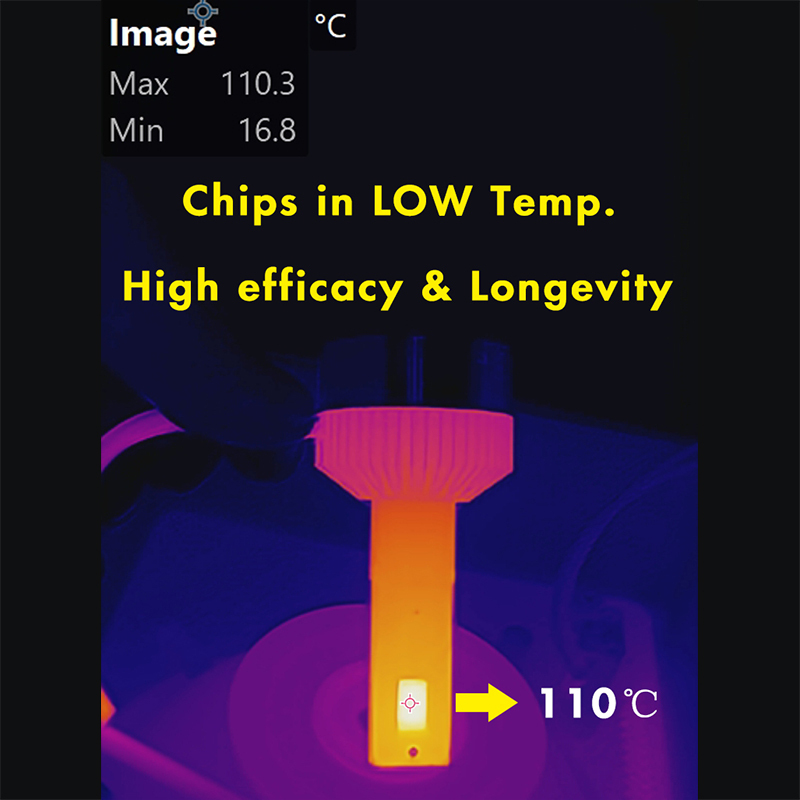

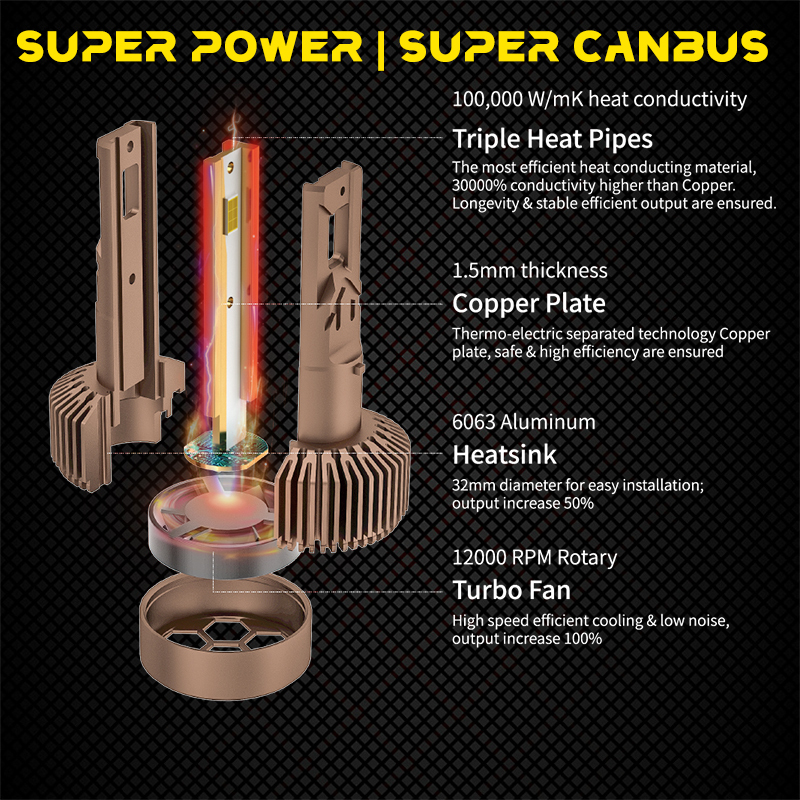

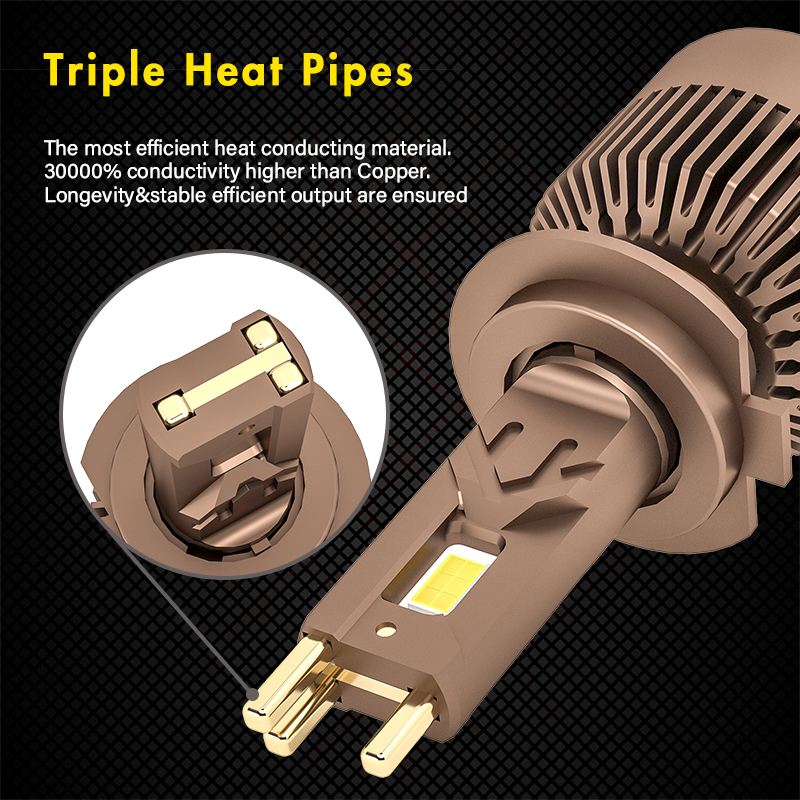

With Triple heat pipes for cooling, it can output efficient 85W 8000lm per bulb stably, keep LEDs in low working Temp for longevity, and increase 800% brightness for driving.

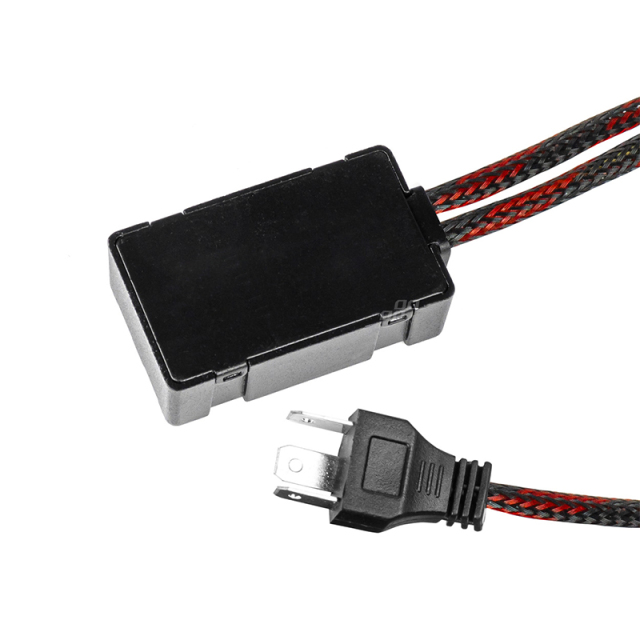

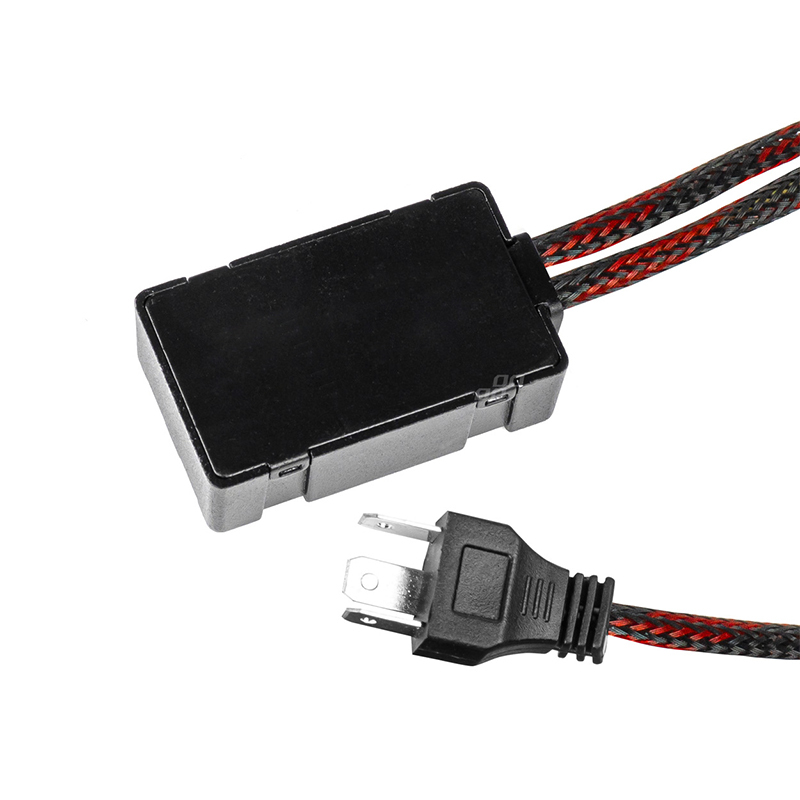

The external driver is built-in strong CANBUS, error free no flashing for most cars in EU, America, Australia, Asia, Middle-east, Africa, etc

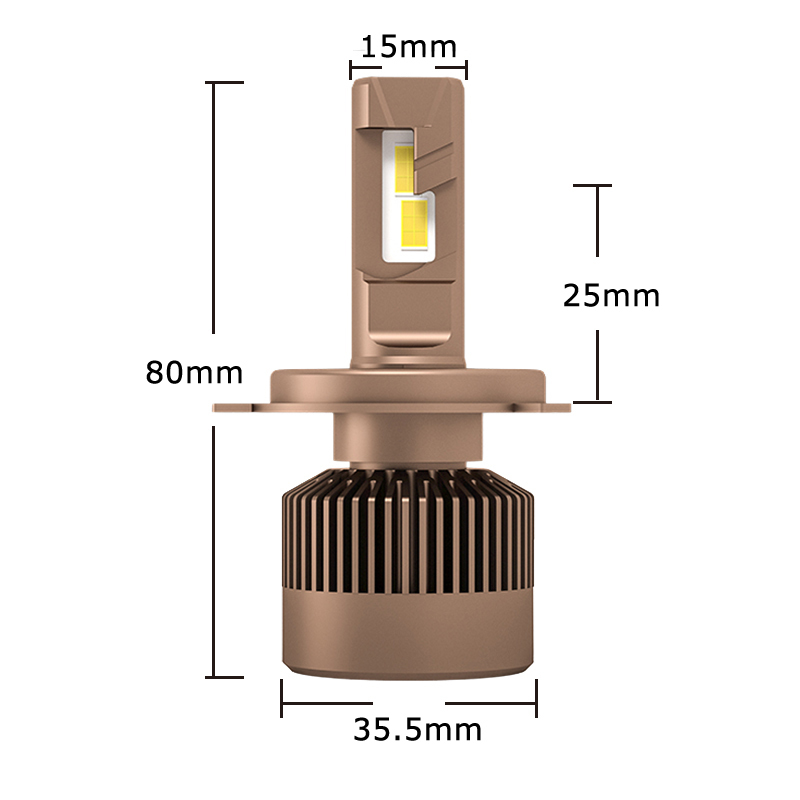

Small 35mm X 80mm MAX size 6063 Aluminium housing, easy to fit most cars.
The LED's position meets ECE R37 for no glaring light, EMC meets ECE R10 for no electronic interference.
It has 9-48V wide working voltage for cars, trucks, motorcycle etc vehicles lighting.
Z7 series is available H1、H3、H7、H8、H9、H11、H16、HB3 9005、HB4 9006、HIR2 9012 bases for option.
| HOUSING MATERIAL | 6063 Aluminum |
| POWER | 90W/bulb |
| LUMENS | 8000Lm/bulb |
| VOLTAGE | DC 9 - 48V |
| OPERATING TEMP | -40°c to + 80°c |
| CERFICATION | CE / Rohs |
| COLOR TEMP. | 6000K |
| WARRANTY | 18 months |
