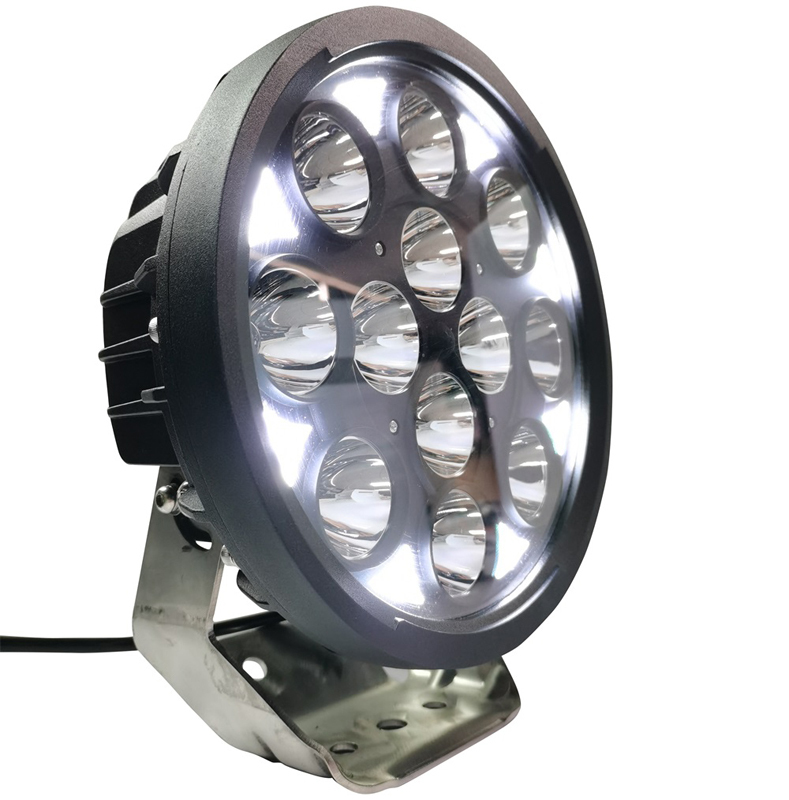

NS-WL-120W is one of the most durable & heavy duty LED Driving Light.
It's 9.5 inch housing allows WL-120W working in any kinds of environment without any defective.
Professional optic designed 10° reflecotrs with 12pcs CREE XM-L2 10W chips, it will offer you MAX 450m 1lux bright driving.

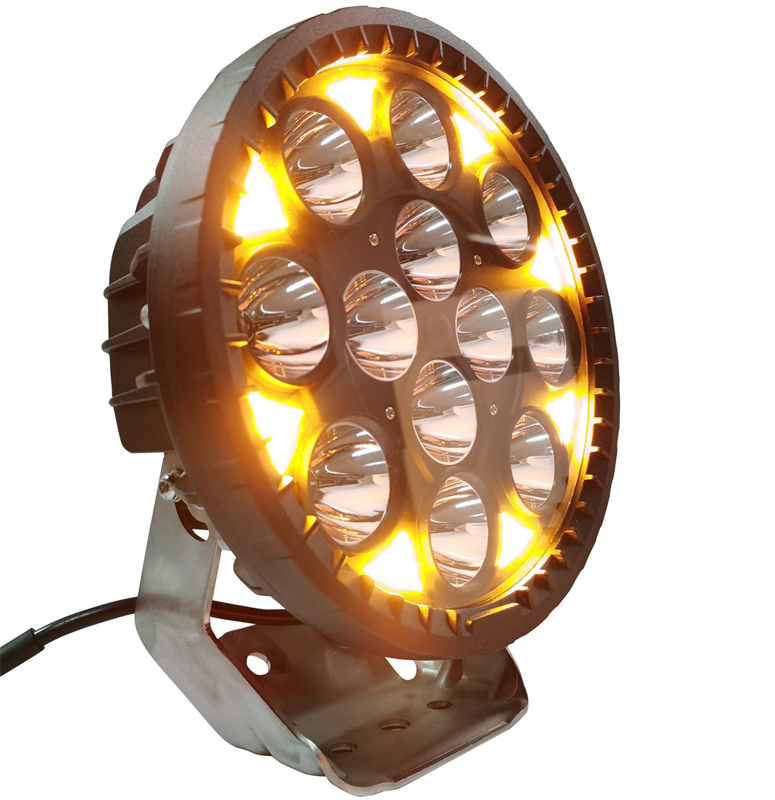

Optional white / amber DRL is available to customize a highly visible & attractive light.
MAX 450m 1lux lighting range
Heavy duty housing
Bullet-proved onbreakable PC lens
Professional optic design
Anti 5% salt spray corrosion dacromet coating, anti-UV
Electrically Protected again RFI and EM Interference
IP68 waterproof
Over and Under Voltage Protection
| HOUSING MATERIAL | Die-cast Aluminium |
| LENS | BAYER PC |
| LED TYPE | 12 x CREE XM-L2 10W + 24pcs SMT for DRL |
| POWER | 120W |
| LUMENS | 19,080Lm (RAW) |
| 18,000Lm (Actual) | |
| VOLTAGE | DC 9 - 32V |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°c to + 80°c |
| EMC | CISPR 25 class 3 |
| CERFICATION | CE / Rohs |

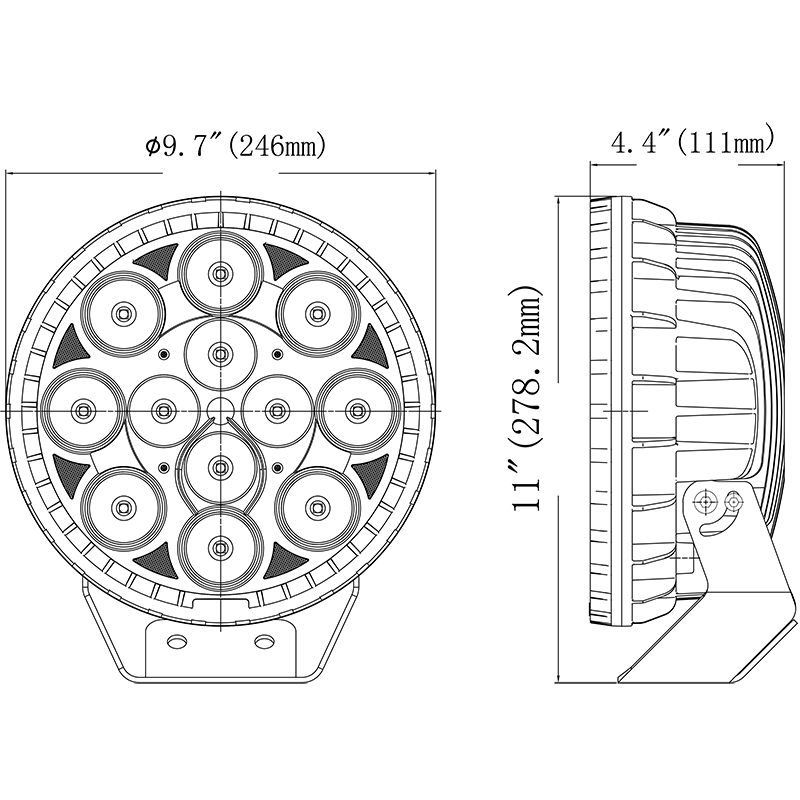

| DIMENSION | 9.7" X 4.4 " (264mm X 111mm) |
| COLOR TEMP. | 5700K |
| WARRANTY | 2 Years |
