NL19 is one of the smallest light tube projector lens headlight bulb in the market.

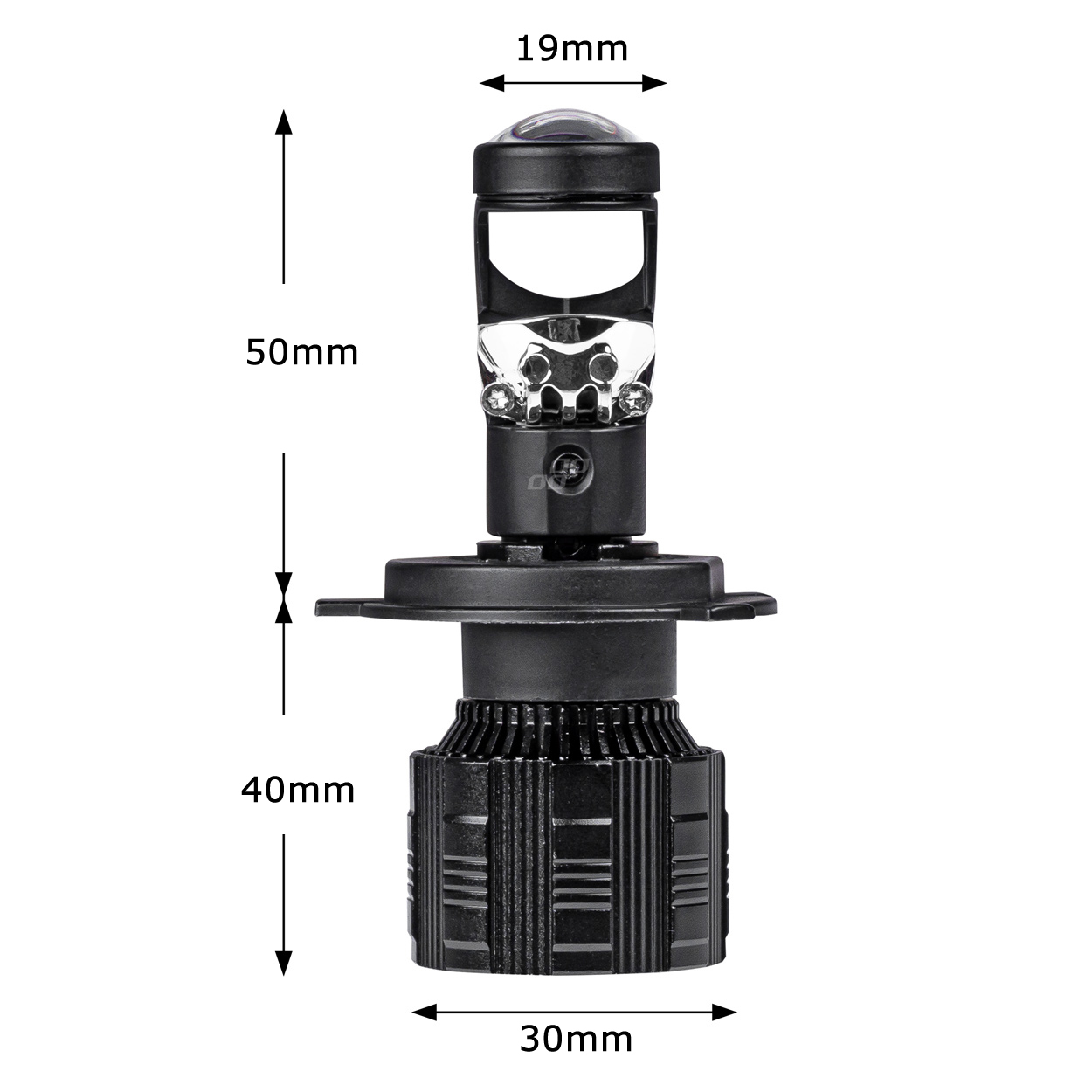

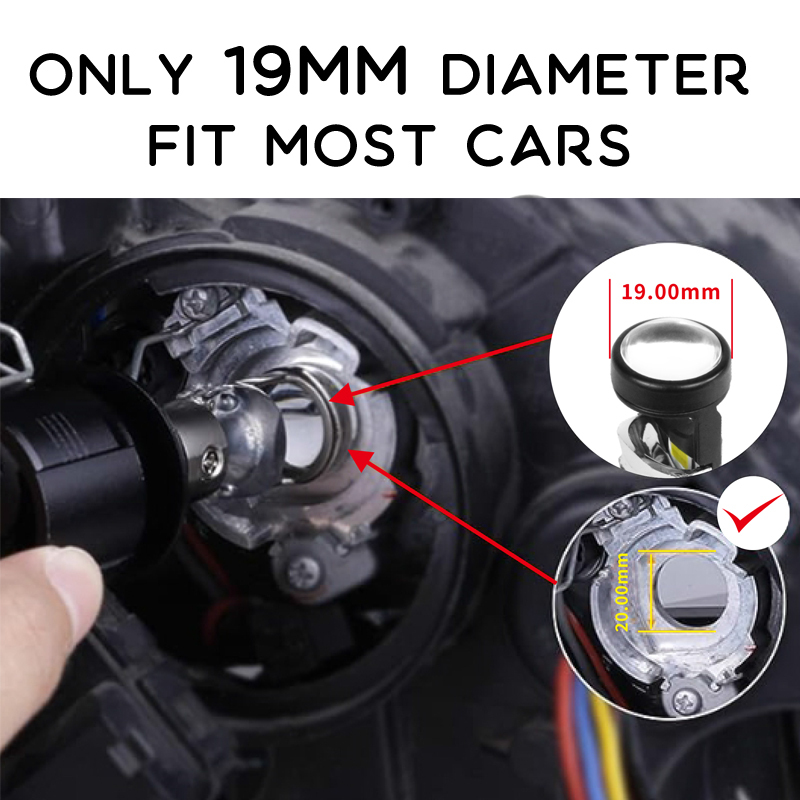

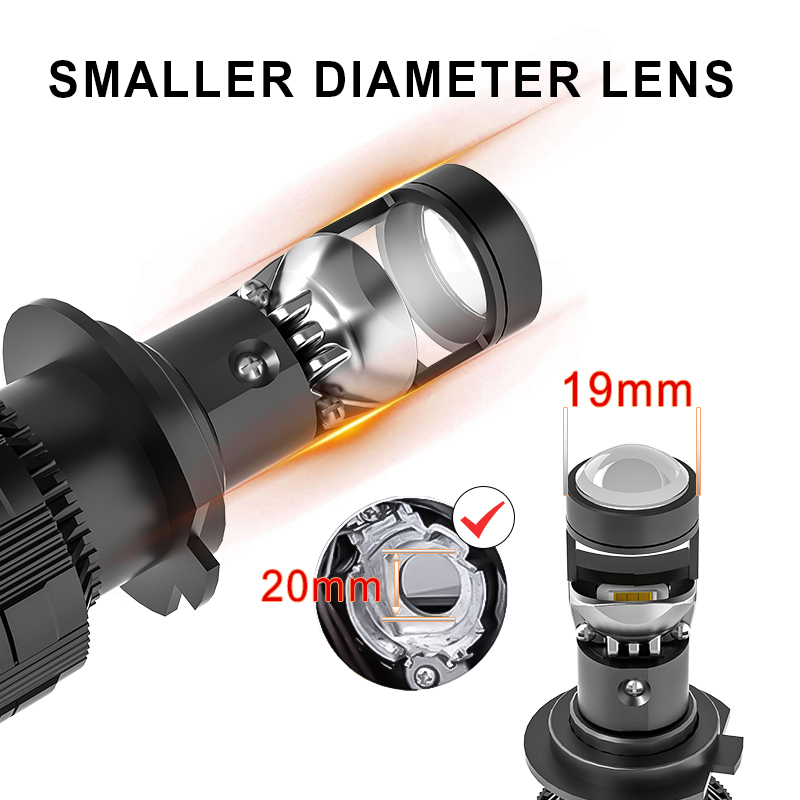

With only 19mm diameter, NL19 is able to pass through Min 20mm headlamp, 99% fitness to upgrade light pattern of reflector headlamp.

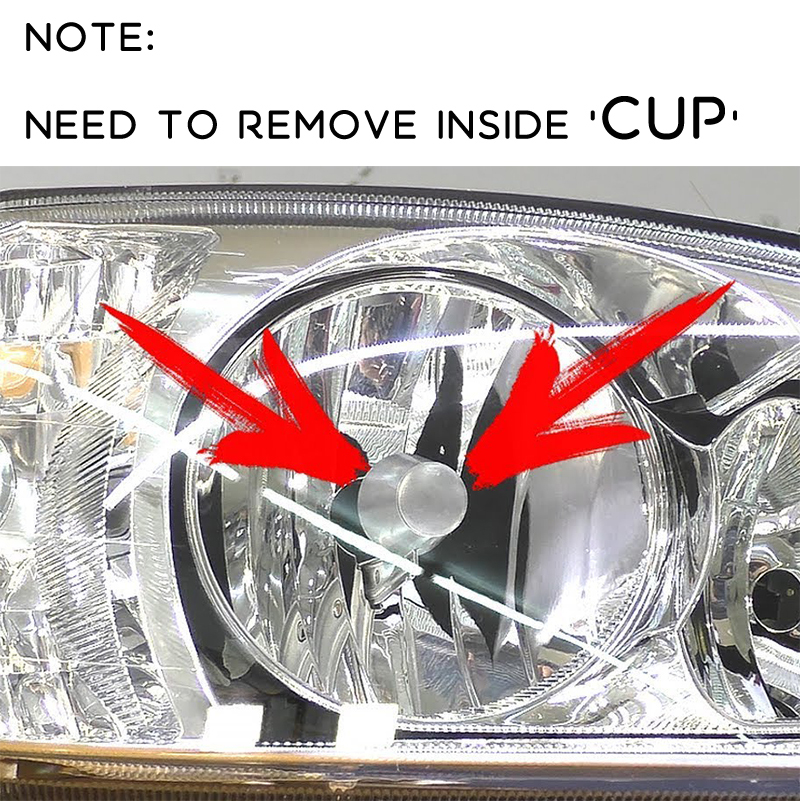

Note: if there is 'cup' / 'bulb shield' inside headlamp, need to remove it before install NL19!

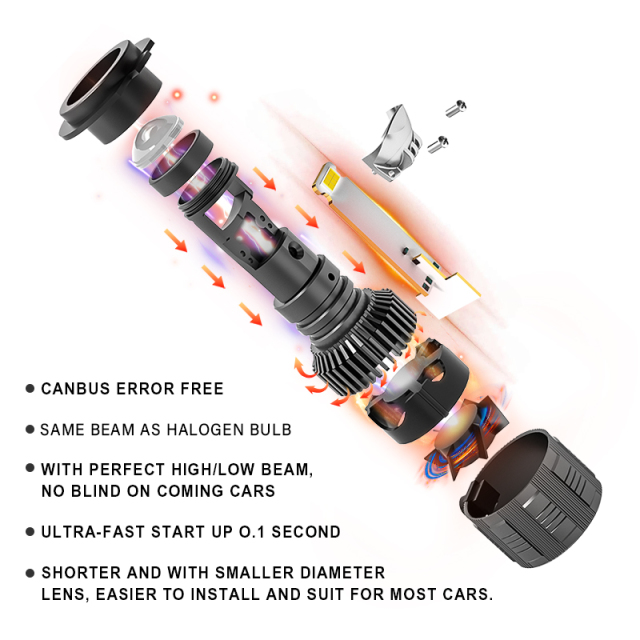

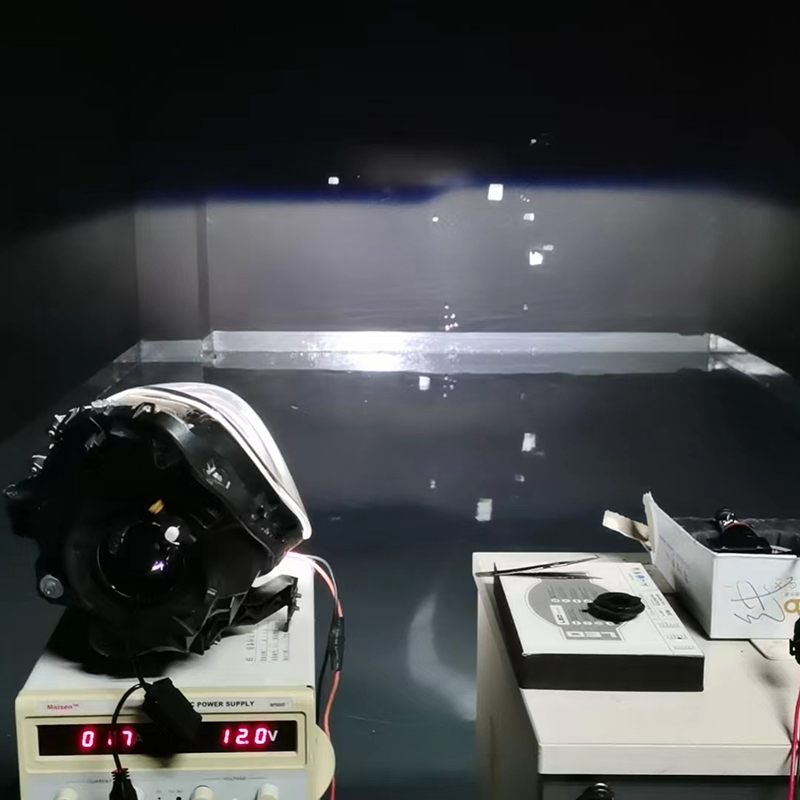

Optic reflector, cut-off line low beam, wide irradiation angle; concentrated and longer range high beam
LEDs is correctly positioned as original halogen filament
9-36V DC wide voltage for car / truck lighting
Electrically Protected again RFI and EM Interference
CANBUS Free
Over and Under Voltage Protection
| HOUSING MATERIAL | 6063 Aluminum |
| HEATSINK | 10,000 rpm fan |
| POWER | 36 W/bulb |
| LUMENS | 3,600Lm/bulb (effective) |
| VOLTAGE | DC 9-36 V |
| OPERATING TEMP | -40°c to + 80°c |
| CERFICATION | CE / ROHS |
| COLOR TEMP | 6500K |
| WARRANTY | 12 months |
